Anchorage Systems
1. Fixed Anchorage Points
1.1 ROD Anchorage Point for steel structures
- PRACTICAL: Thanks to its compact size, this anchor can be installed quickly and easily
- VERSATILE: It can be assembled on tubular and box-type steel structures of different sizes
| Material | Stainless steel |
| Dimensions (mm) | 208 x 97 x 75 - 140 |
| Anchor point diameter (mm) | 17 |
| Weight (kg) | 2,5 |
ROD Anchorage Point
1.2 CARRIER Anchorage Point for steel structures
- FUNCTIONAL: Thanks to the integrated rollers, the device slides smoothly along the entire steel structure.
- PRACTICAL: Quick and easy to install anchorage on steel beams with different widths, from 75 to 120 mm.
| Material | Stainless steel |
| Dimensions (mm) | 195 x 176 x 212 |
| B (mm) | 50 - 120 |
| H (mm) | 60 |
| Weight (kg) | 5,2 |
CARRIER Anchorage Point
1.3 GLUED Anchor Point for Bitumen and PVC Roofs
- FUNCTIONAL: The application does not require any perforation of the PVC or bituminous sheathing, guaranteeing perfect waterproofing of the roof.
- FAST INSTALLATION: The system is quickly installed with very few tools.
- VERSATILE: Equipped with a 360° swivel eyelet to facilitate work operations.
GLUED Anchor Point
1.4 KITE Anchor Point
- PRACTICAL: Thanks to its lightweight and compact size, this anchor can be installed quickly and easily.
- SAFE: Laser cut from a single piece with no welding points, it improves safety in all its applications.
- VERSATILE: Ideal as an anchor point in multiple environments, it allows the operator to safely access.
KITE Anchor Point
1.5 WING Anchor Point for Work at Height and in Suspension
- SOLID: Extremely robust and reliable.
- VERSATILE: Can be used both for suspended work (1 person) and for protection against falls from height (3 people).
- MULTIPURPOSE: With three different versions of two materials and in three different colours, you will always find the right product for every application and environmental condition.
WING Anchor Point
1.6 Anchor Points for Steel Sheet

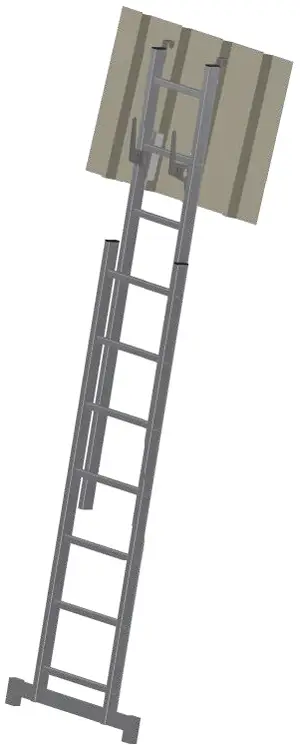

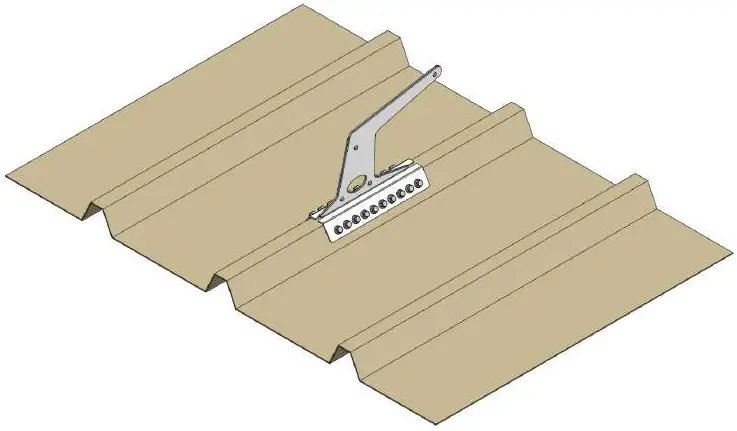

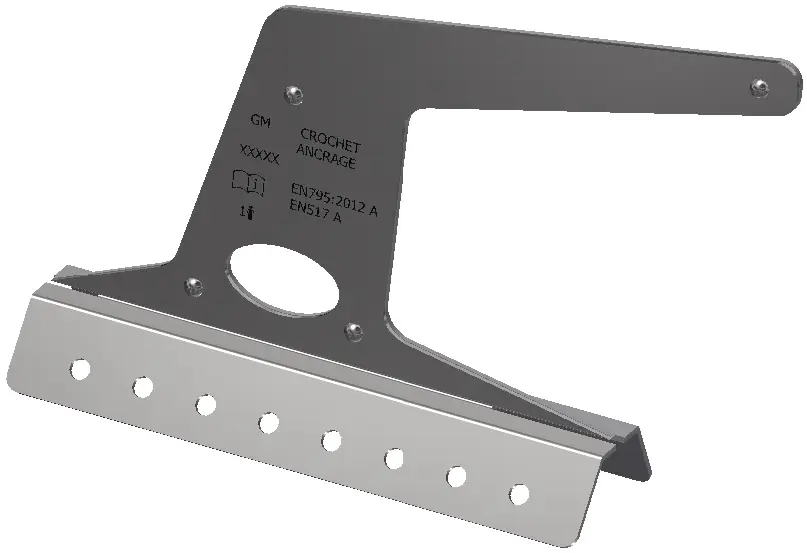

1.6.1 Steel Deck Anchorage Hook
- The STEEL DECK ANCHOR HOOK in stainless steel is an anchorage system designed for steel deck roofing.
- No cutting or amendment of the roofing complex is necessary.
- It can be used as a ladder hook (Standard EN517) or an individual anchorage device (Standard EN795 class A).
- This anchorage point secures a user at the bottom of a slope.
| Reference | PNC0086 |
| Material | Stainless steel |
| Weight | 300 g |
| Treatment | Electro-polishing |
Steel Deck Anchorage Hook

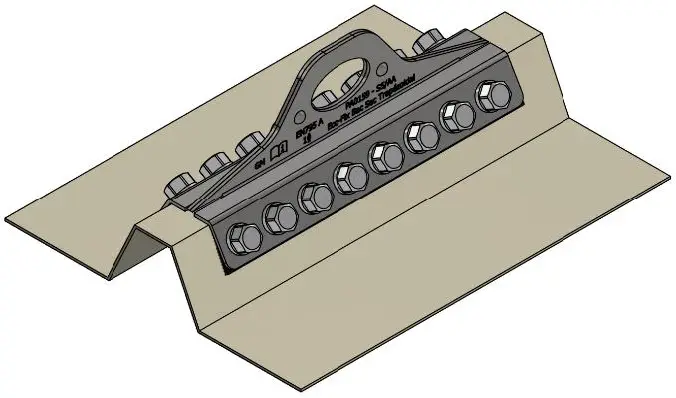

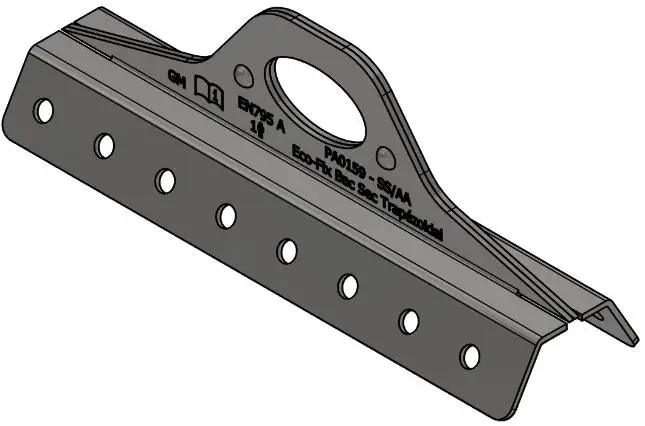

1.6.2 Trapezoidal Steel Sheet Anchor Ring
- The TRAPEZOIDAL STEEL SHEET ANCHOR RING in stainless steel is an anchorage system designed for trapezoidal wave steel sheet roofing.
- No cutting or amendment of the roofing complex is necessary.
- This anchorage point, tested in accordance with EN795:2012 in two directions can be used to secure a single user.
| Reference | PNC0125 |
| Material | Stainless steel |
| Weight | 343 g |

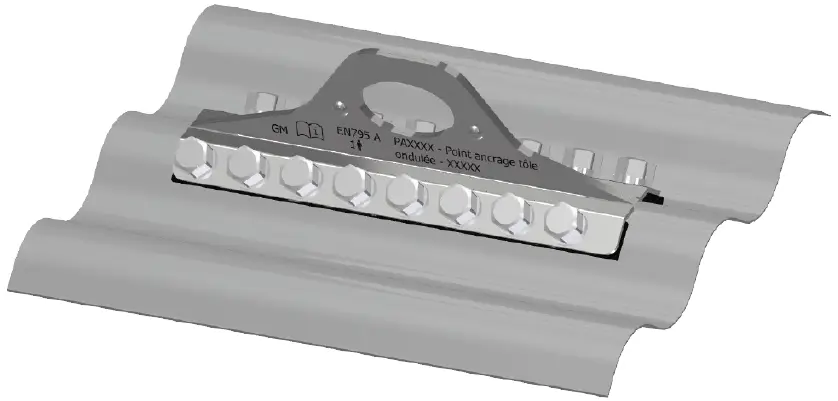

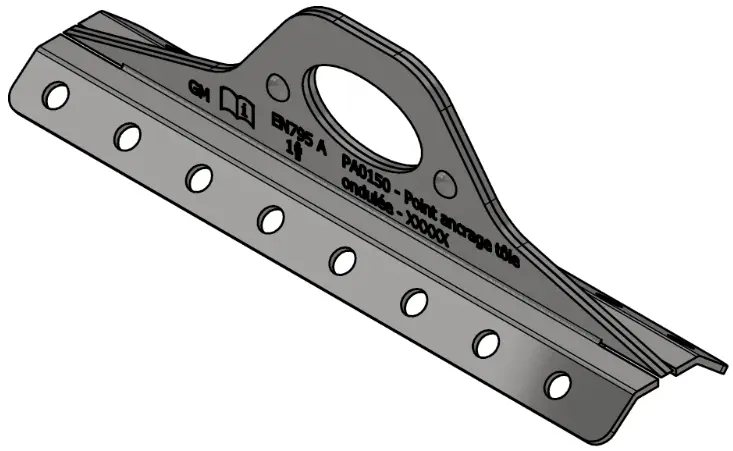

1.6.3 Corrugated Steel Sheet Anchor Ring
- Realizat din oțel inoxidabil durabil, acest inel de ancorare este proiectat special pentru acoperișurile din tablă cutată.
- Punctul de ancorare, testat conform standardului EN795:2012 în două direcții, garantează protecția și siguranța unui utilizator.
- Instalarea se face simplu și rapid, fără a fi nevoie de tăieri sau modificări ale structurii acoperișului.
| Reference | PNC0121 |
| Material | Stainless steel |
| Weight | 300 g |
| Treatment | Electro-polishing |
1.7 MOBILE Anchor Point
- REMOVABLE: It can be assembled and disassembled easily and quickly, to safely ensure temporary access to the roofing.
- FUNCTIONAL: It can be temporarily installed on doors, windows and inclined skylights, with no structural damage.
| Material | Aluminium EE30 |
| L (mm) | 1450 |
| B (mm) | 770 |
| H (mm) | 175 |
| Weight (kg) | 6,7 |
MOBILE Anchor Point
2. Mobile Anchorage Points
- Bettersafe WeightAngel freestanding counterweight Anchor with 12 plates weighing 24 kg each. Anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to tough environments.
- Free-standing system installs to flat or up to 5 degree sloped roofs and is approved for use on concrete, single ply and bitumen membrane, asphalt sanded and stone chippings for added job-site flexibility
- Built-in shock absorbing system for protects the worker and the structure in the event of a fall, limiting fall arrest forces to safe levels
- Each counterweight has an ergonomic carrying handle for easy set-up and user satisfaction
- Portable and reusable device that can be removed and simply re-installed in a new location for added jobsite flexibility and lower overall cost of ownership
- Made of recycled materials
Mobile Anchorage Points
| Component | Value |
|---|---|
| Weight | 300 kg |
| Individual weights | 24 kg |
| Qty weights | 12 units |
| Weight of posts / supports | 12 kg |
| Width | 1200 mm |
| Height | 465 mm |
| Post | Polyurethane |
| Eye Ring | Stainless steel 316 |
| Cover | Aluminium |
| Bolts | Stainless steel 316 |
Mobile Anchorage Points Bettersafe WeightAngel
3. Self-Contained Vacuum Anchor Systems
Self-Contained Vacuum Anchor Systems MSA Latchways WinGrip
- Finding suitable anchor points is not only difficult for utility workers, manufacturers, maintenance techs, and others working at height, it’s critical to ensuring their safety.
- Originally designed to protect personnel from falls while working on aircraft, Latchways WinGrip provides portable, compact, lightweight fall protection for industrial workers of all types.
- This unparalleled vacuum–based fall protection solution is ideal for short-term applications, and wherever an anchor point is not readily available.
- The system is comprised of a ground-based vacuum module, portable vacuum pad and durable connection hose.
Applications
- Rolling Stock Access
- Industrial Vehicle Maintenance
- OTR Manufacturing
- Storage Tank Maintenance
- Ship Building
- Substation Maintenance
Mobile Anchorage Points
Advantages
- Intrinsically safe and suitable for wet or dry surfaces, indoors and out.
- Lightweight and portable anchors less than 13.5 lbs. (6.1 kg).
- Uses compressed air or nitrogen so no electrical or batteries are needed.
- Easy installation and ready-to-use in minutes.
- Simple, hands-free operation.
- No metal-on-metal contact to protect surface coatings.
- Safety engineered with an audible alarm in the event of a loss in supply pressure or sufficient vacuum level.
- System-tested and rated for fall arrest.
- Guaranteed safety period with all systems.
Self-Contained Vacuum Anchor Systems MSA Latchways WinGrip
4. Anchorage Points for Containers
- Compatible with all ISO certified containers
- Provides an elevated anchorage point reducing fall clearance requirements
- Ensures total fall protection solution, even while working on a single container
- No tools or container modification required

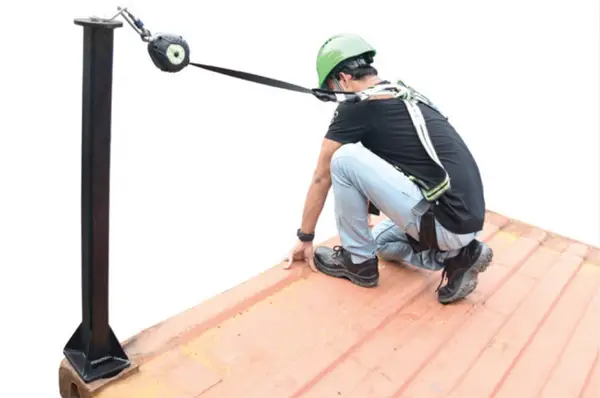

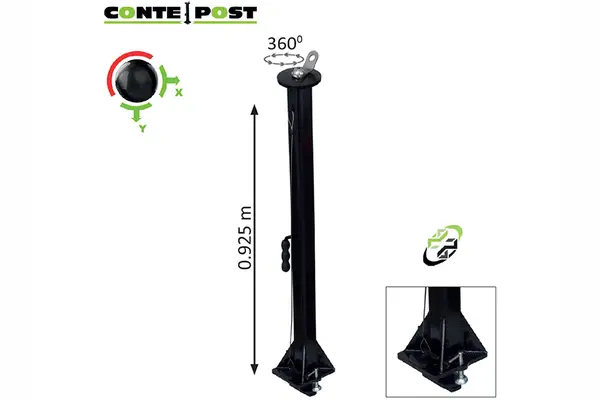

4.1 CONTE POST: Anchor post for ISO container
- Container Anchor post is meant to provide a temporary anchor for working on top of ISO 10 ft, 20 ft & 40 ft shipping containers.
- In addition to be used as a standalone anchor post, it can also be used to form a horizontal life line over the top of container depending upon the requirement of work to be done.
- Comes with a side lock & tag line arrangement for secure installation by one person only.
- Can be removed without damaging the container.
- Has an anchorage allowing a 360° rotation.
- Has a carrying handle.
| Material | Steel |
| Height | 92.5 cm |
| Weight | 14.53 kg |
| Compliance | EN 795:2012 Type B |
| Static strength as per EN 795:2012 Type B | 12 kN |
| Minimum breaking strength of the system | 15 kN |

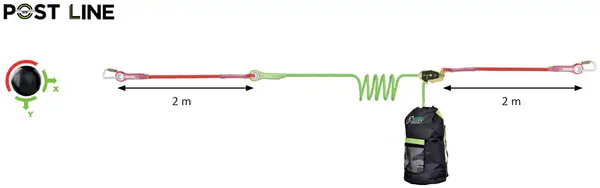

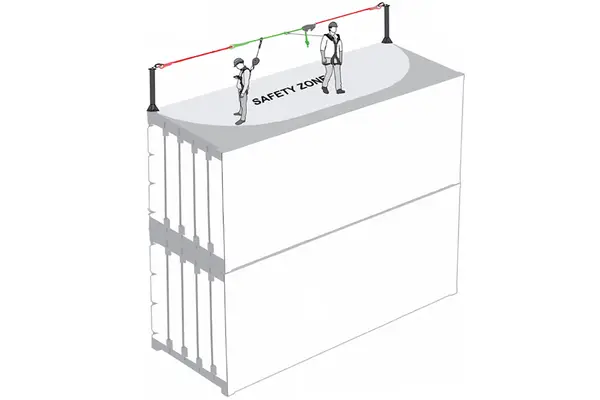

4.2 POST LINE: 2 User Horizontal Temporary Lifeline for ISO container
- Temporary and reusable lifeline specially designed to provide a suitable and safe anchorage to 1 or 2 users at the same time while working on an ISO container.
- To be used in combination with 2 anchor posts for ISO container,
- Kernmantle rope (16 mm) with tensioner for adjustment between supports.
- 2 m of red rope at each end to mark hazardous areas.
- Includes 2 steel triple-locking carabiners and transport bag.
| Length | 14 m (min. 5 m) |
| Materials | Steel (tensioner, connectors), Polyester (rope) |
| Weight | 9.27 kg |
| Compliance | EU Regulation 2016/425, EN 795:2012, TS 16415: 2013 Type C |
| Static strength | 18 kN |
| Breaking strength | 23 kN |

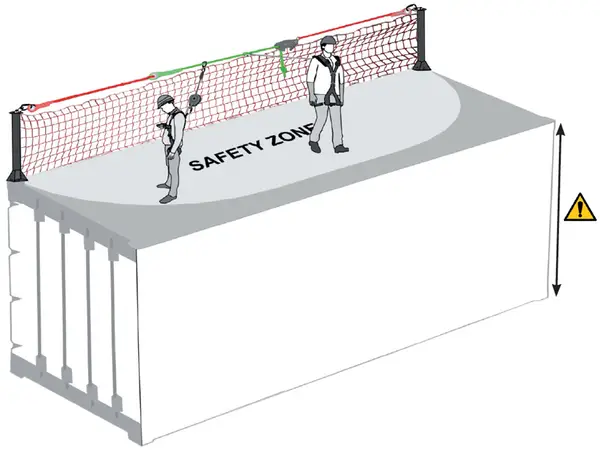

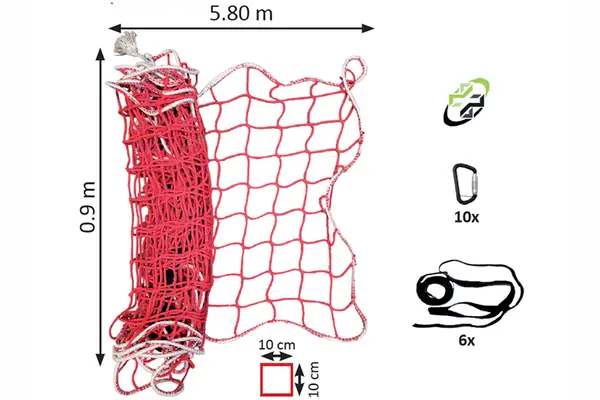

4.3 Marking net for temporary lifeline for 20 ft container
- Net to be installed between 2 anchor posts for ISO container (FA 60 032 00) and under the temporary lifeline for ISO container (FA 60 007 03), when the clearance is low.
- Used to mark the fall risk zone located under the temporary lifeline when working on a 20 or 40 foot ISO container.
- CAUTION: this is not a fall arrest net (EN 1263-1), but a marking net!
| Dimensions | 4.40 m x 1.10 m |
| Material net | High-density polyethylene |
| Fixing connectors | Aluminium |
| Fixing straps | Polyester/Aluminium |
| Weight (including fixings) | 2.06 kg |
5. Anchorage Points for Façades
- FAS is a special anchoring device for working at heights using rope climbing techniques (also called industrial climbing)
- The construction of the entire system allows for safe work on the façade of the building thanks to the use of booms that secure the edge of the attic walls with flashing. It works perfectly when carrying out works related to façade maintenance, such as cleaning, repairs, replacing glass and applying one vision foil.
- The FAS consists of seats and booms that act as a guide and rope extraction for an employee descending on the elevation. The seats are permanently anchored to the attic or ceiling. Every time during the work, the boom is placed on a seat that is permanently anchored to the building structure.
- The standard reach of the cranes is from 1 to 2.5 meters with the possibility to adjusting the angle of work set in the seats, thanks to which we gain comfortable access to a wide field of coverage. In the case of tall attics, special platforms can be mounted at each of the seats.

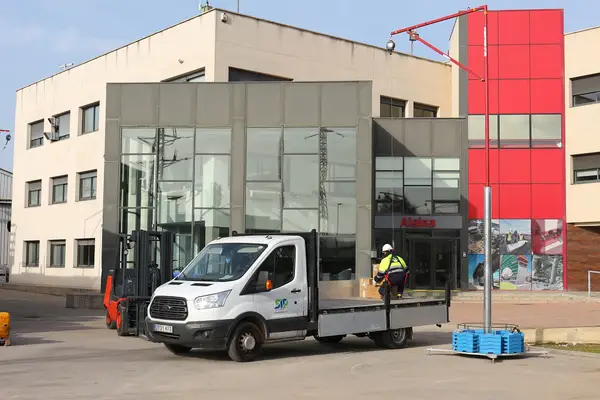

6. Alsipercha Fall Protection System
Mobile Base Unit
- Alsiperchais a fall protection system, that provides an effective overhead protection for those who are exposed to falls when working at heights.
- This revolutionary system includes a built-in energy-absorber device (diagonal) that reduces the impact forces transmitted to the user and to the structure, in case of fall.
- Thanks to an advanced and robust design, the product also admits a maximum number of 2 users connected simultaneously, being one of the most versatile and effective overhead fall protection systems of the market.
- Available in two different formats, the Alsipercha (steel – 79 kgs, doesn’t suffer permanent deformation, and installation by crane / lifting equipments) and the Alupercha (aluminum – 19 kgs, and manual installation w of craneith no need of crane / lifting equipments), can be combined with a wide range of accessories and supports.
- In compliance with standards: EN-795 (CE certified), OSHA/ANSI (USA) and CSA (CANADA).
„Product designed and manufactured by Alsina Formwork Solutions – www.alsina.com”.
